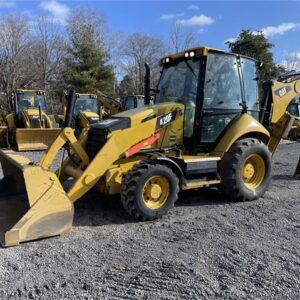

2013 Caterpillar 420F
2013 Caterpillar 420F
Machine Info:
| Serial Number: | 0SKR01449 |
| Machine Location: | FORT WORTH, TX |
From the manufacturer:
| BACKHOE | |
| Dig Depth | 14.4 ft ( 4.39 m ) |
| Load Height | 11.9 ft ( 3.63 m ) |
| DIMENSIONS | |
| Height to Top of Suspended Cab | 9.3 ft ( 2.83 m ) |
| Transport Length | 23.6 ft ( 7.19 m ) |
| ENGINE | |
| Bore | 4.2 in ( 10.67 cm ) |
| Displacement | 268.6 cu in |
| Engine Model | C4.4 ACERT |
| Gross Power | 102.0 hp ( 76.06 kw ) |
| Net Power | 92.6 hp ( 69.05 kw ) |
| Net Torque Rise | 0.5 |
| Power Measured @ | 2,200.0 rpm |
| Stroke | 5.0 in ( 12.7 cm ) |
| HYDRAULIC SYSTEM | |
| Pump Flow Capacity | 43.1 gpm ( 163.13 lpm ) |
| Pump Type | Variable Flow, Axial Piston |
| LOADER | |
| Bucket Breakout Force | 11,283.0 lbs ( 5117.94 kg ) |
| Lift Capacity | 7,237.8 lbs ( 3283.04 kg ) |
| OPERATING SPECIFICATIONS | |
| Cooling System Fluid Capacity | 5.8 gal ( 21.95 l ) |
| Fuel Capacity | 43.6 gal ( 165.03 l ) |
| Hydraulic System Fluid Capacity | 25.1 gal ( 95 l ) |
| Max Weight | 24,251.0 lbs ( 11000.18 kg ) |
| Oil System Fluid Capacity | 2.4 gal ( 9.08 l ) |
| Operating Weight | 15,395.0 lbs ( 6983.13 kg ) |
| Transmission Fluid Capacity | 4.9 gal ( 18.55 l ) |
| TRANSMISSION | |
| Max Speed | 25.0 mph ( 40.23 kph ) |
