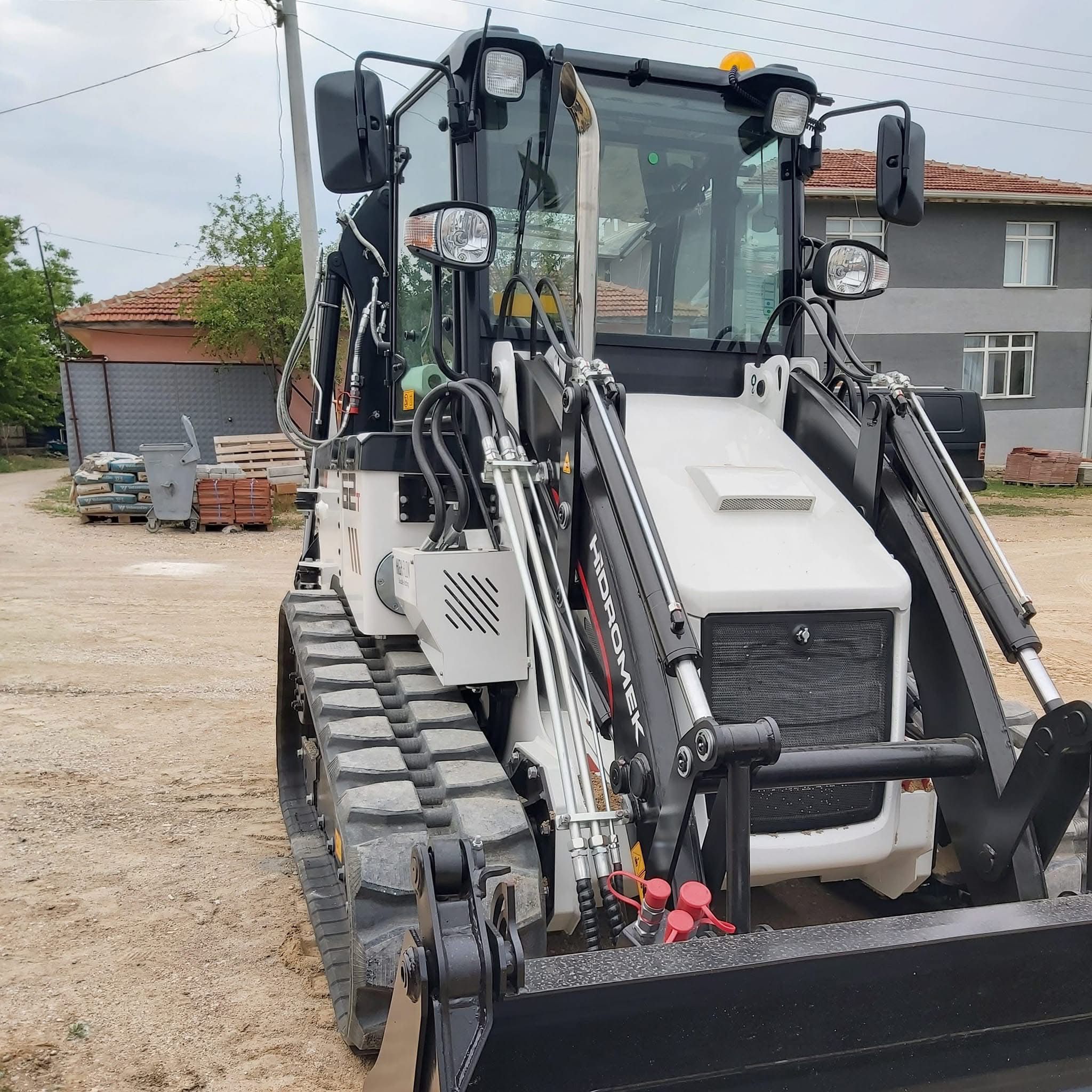

HIDROMEK BACKHOE LOADER 62T
HIDROMEK BACKHOE LOADER 62T
Description
General / Overview
•Mini crawler backhoe loader designed for work in narrow, rough, or severely fielded conditions.
•High maneuverability with crawler (tracked) structure.
•Capacity both as a loader and excavator in one machine.
⸻
Engine & Performance
Parameter
Value
Engine model
Kubota V2403-CR-T-EW03
Displacement
2,434 cm³
Type
4-cylinder inline, water-cooled, 4-stroke diesel, turbocharged
Emission Standard
EU Stage V / US Tier 4 Final
Max Power
~65.2 HP (48.6 kW) @ 2700 rpm
Max Torque
~198.5 Nm @ 1600 rpm
Hydraulic System
•Working pressure: ~220 bar
•Main hydraulic pump flow: ~60 L/min @ 2700 rpm
⸻
Loader (Front) Specs
Parameter
Value
Loader bucket capacity
0.45 m³
Maximum loader bucket breakout force
~2,883 kgf
Maximum loading arm breakout force
~2,600 kgf
Lift capacity to maximum height
~1,576 kg
Backhoe (Rear) Specs
Parameter
Value
Backhoe bucket capacity
0.06 m³
Maximum backhoe bucket breakout force
~1,985 kgf
Maximum arm breakout force
~1,500 kgf
⸻
Dimensions, Weight & Movement
Parameter
Value
Operating weight
~5,280 kg
Transport / Overall Dimensions (approx)
• Length: ~3.720 m • Width: ~1.966 m • Height: ~2.298 m
Ground Travel Speed
~7.5 km/h
Max Reach / Boom reach (horizontal)
~3.608 m
Dig Depth (backhoe)
~2.751 m
Max discharge height / loader dump height
~2.40 m
Features & Cabin / Equipment Highlights
•ROPS / FOPS certified cabin.
•Air conditioning and heating.
•Joystick controls, integrated into seat.
•Monolithic rear window, openable side windows.
•Radio / MP3 player, 12-volt socket, personal storage.
•Hydraulic lines for breaker (hammer) attachment.
