OM CAT 308 CR
OM CAT 308 CR
Maskinvekt: (fra) 8700 kg
Skuffestørrelse: 400 L
Bruttoeffekt: 55,4 kW/ 74,3 hk
Korthekk
Description
OM CAT 308 CR

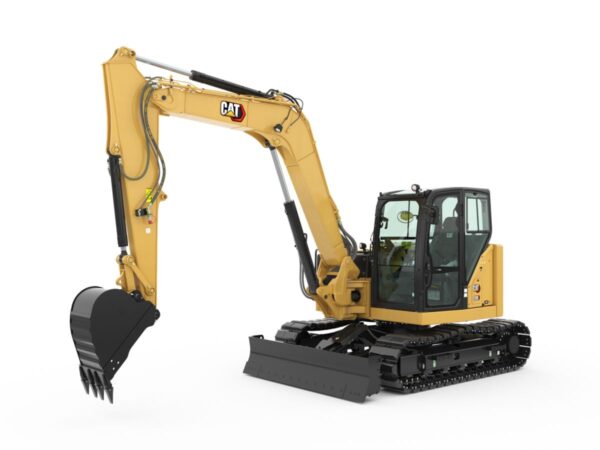

The Cat® 308 CR Mini Excavator delivers maximum power and performance in a mini size to help you work in a wide range of applications.
SPESIFIKASJONER
Motor
| Net Power | 51.8 kW |
| Motormodel | Cat C3.3B |
| Stroke | 120 mm |
| Bore | 94 mm |
| Gross Power – SAE J1995 | 55.4 kW |
| Displacement | 3.33 l |
| Rated Net Power – 2,200 rpm – U.S. EPA Tier 4 Final/EU Stage V – ISO 9249/EEC 80/1269 | 51.8 kW |
Weights
| Operating Weight | 9105 kg |
| Note (1) | *Minimum Weight is based on rubber tracks, no counterweight, operator, full fuel tank, standard stick, blade and no bucket. |
| Note (2) | **Maximum Weight is based on steel tracks with rubber pads, counterweight, operator, full fuel tank, long stick, blade and no bucket. |
| Maximum Operating Weight with Cab** | 9105 kg |
| Minimum Operating Weight with Cab* | 8440 kg |
Weight Increase from Minimum Configuration
| Steel Tracks with Pads | 341 kg |
| Counterweight | 250 kg |
| Long Stick | 66 kg |
Travel System
| Maximum Traction Force – High Speed | 27.8 kN |
| Ground Pressure – Maximum Weight | 39.8 kPa |
| Ground Pressure – Minimum Weight | 36.9 kPa |
| Travel Speed – High | 5.1 km/h |
| Travel Speed – Low | 3.1 km/h |
| Maximum Traction Force – Low Speed | 67.5 kN |
| Gradeability – Maximum | 30 degrees |
Påfyllingskapasitet
| Drivstofftank | 147 l |
| Hydraulic System | 110 l |
| Hydraulic Tank | 53 l |
| Cooling System | 10 l |
| Engine Oil | 11.2 l |
Hydraulic System
| Digging Force – Bucket | 62 kN |
| Operating Pressure – Travel | 285 bar |
| Operating Pressure – Swing | 250 bar |
| Operating Pressure – Equipment | 285 bar |
| Digging Force – Stick – Long | 35.7 kN |
| Type | Load Sensing Hydraulics with Variable Displacement Piston Pump |
| Note | Flow and pressure are not combinable. Under load, as flow rises pressure goes down. |
| Pump Flow at 2,400 rpm | 167 l/min |
| Digging Force – Stick – Standard | 42.3 kN |
| Maximum Auxiliary Circuit – Primary – Pressure at Pump | 285 bar |
| Maximum Auxiliary Circuit – Secondary – Pressure at Pump | 285 bar |
| Maximum Auxiliary Circuit – Primary – Flow at Pump | 131 l/min |
| Maximum Auxiliary Circuit – Secondary – Flow at Pump | 33 l/min |
Swing System
| Machine Swing Speed | 10.6 r/min |
| Boom Swing – Right | 50 degrees |
| Boom Swing – Left | 60 degrees |
Blade
| Height | 431 mm |
| Width – Standard | 2300 mm |
| Width – Wide | 2450 mm |
Certification – Cab
| Top Guard | ISO 10262:1998 (Level I) |
| Roll Over Protective Structure (ROPS) | ISO 12117-2:2008 |
| Tip Over Protective Structure (TOPS) | ISO 12117:1997 |
Sound
| Operator Sound Pressure (ISO 6396:2008) | 72 dB(A) |
| Note | European Union Directive “2000/14/EC” |
| Average Exterior Sound Pressure (ISO 6395:2008) | 99 dB(A) |
Dimensions – Standard Stick
| Cab Height | 2541 mm |
| Vertical Wall | 2991 mm |
| Boom In Reach | 3059 mm |
| Tail Swing with Counterweight | 1585 mm |
| Boom Swing – Right | 935 mm |
| Track Belt/Shoe Width | 450 mm |
| Maximum Reach | 7141 mm |
| Stick Length | 1820 mm |
| Maximum Blade Height | 370 mm |
| Boom Swing – Left | 604 mm |
| Maximum Blade Depth | 407 mm |
| O/A Track Width | 2300 mm |
| Maximum Dig Height | 6736 mm |
| Maximum Dump Clearance | 4760 mm |
| Maximum Reach – Ground Level | 6949 mm |
| Tail Swing without Counterweight | 1450 mm |
| O/A Undercarriage Length | 2880 mm |
| Swing Bearing – Height | 756 mm |
| Ground Clearance | 350 mm |
| Dig Depth | 4108 mm |
| Note | *Boom Height when stick is pinned in transport position with no attachments. |
| Overall Shipping Length – with Counterweight | 6706 mm |
| Note (1) | **Boom Height when stick is pinned in working position with attachments. Standard Stick offers only one pin position. |
| Overall Shipping Length – without Counterweight | 6574 mm |
| Note (2) | ***With blade positioned at the rear of the machine. |
| Height – Boom Working – With Tools** | 2660 mm |
| Height – Boom Transport – No Tools* | 2430 mm |
Dimensions – Long Stick
| Dig Depth | 4643 mm |
| Boom Swing – Left | 604 mm |
| Maximum Dig Height | 7039 mm |
| Maximum Blade Height | 370 mm |
| Track Belt/Shoe Width | 450 mm |
| Cab Height | 2541 mm |
| Tail Swing with Counterweight | 1585 mm |
| O/A Undercarriage Length | 2880 mm |
| Maximum Dump Clearance | 5072 mm |
| Boom Swing – Right | 935 mm |
| Maximum Blade Depth | 407 mm |
| Ground Clearance | 350 mm |
| Stick Length | 2358 mm |
| Maximum Reach | 7637 mm |
| Maximum Reach – Ground Level | 7460 mm |
| Boom In Reach | 3215 mm |
| Swing Bearing – Height | 756 mm |
| O/A Track Width | 2300 mm |
| Tail Swing without Counterweight | 1450 mm |
| Vertical Wall | 3404 mm |
| Note | *Boom Height when stick is pinned in transport position with no attachments. |
| Note (2) | ***With blade positioned at the rear of the machine. |
| Note (1) | **Boom Height when stick is pinned in working position with attachments. Standard Stick offers only one pin position. |
| Height – Boom Transport – No Tools* | 2260 mm |
| Height – Boom Working – With Tools** | 3050 mm |
| Overall Shipping Length – without Counterweight | 6872 mm (270.6 in)*** |
| Overall Shipping Length – with Counterweight | 6872 mm (270.6 in)*** |
Air Conditioning System
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.0 kg of refrigerant which has a CO2 equivalent of 1.430 metric tonnes. |
Sustainability
| Recyclability | 96% |
